Pallet Shuttle
Heavy-Duty Agility: Smarter, Stronger, Every Direction.
The BlueSword Four-Way Shuttle delivers unmatched warehouse efficiency with its ultra-slim profile, high payload capacity, and omnidirectional mobility. Engineered for precision and speed, it serves various industries with high-density, high-efficiency, high-flexibility storage solutions.

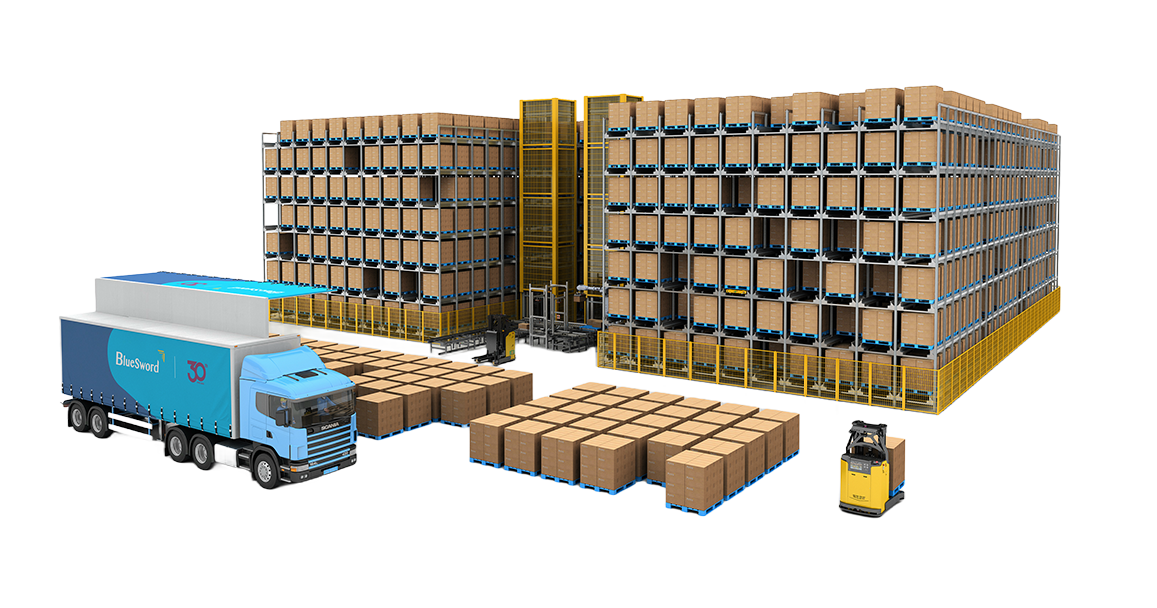

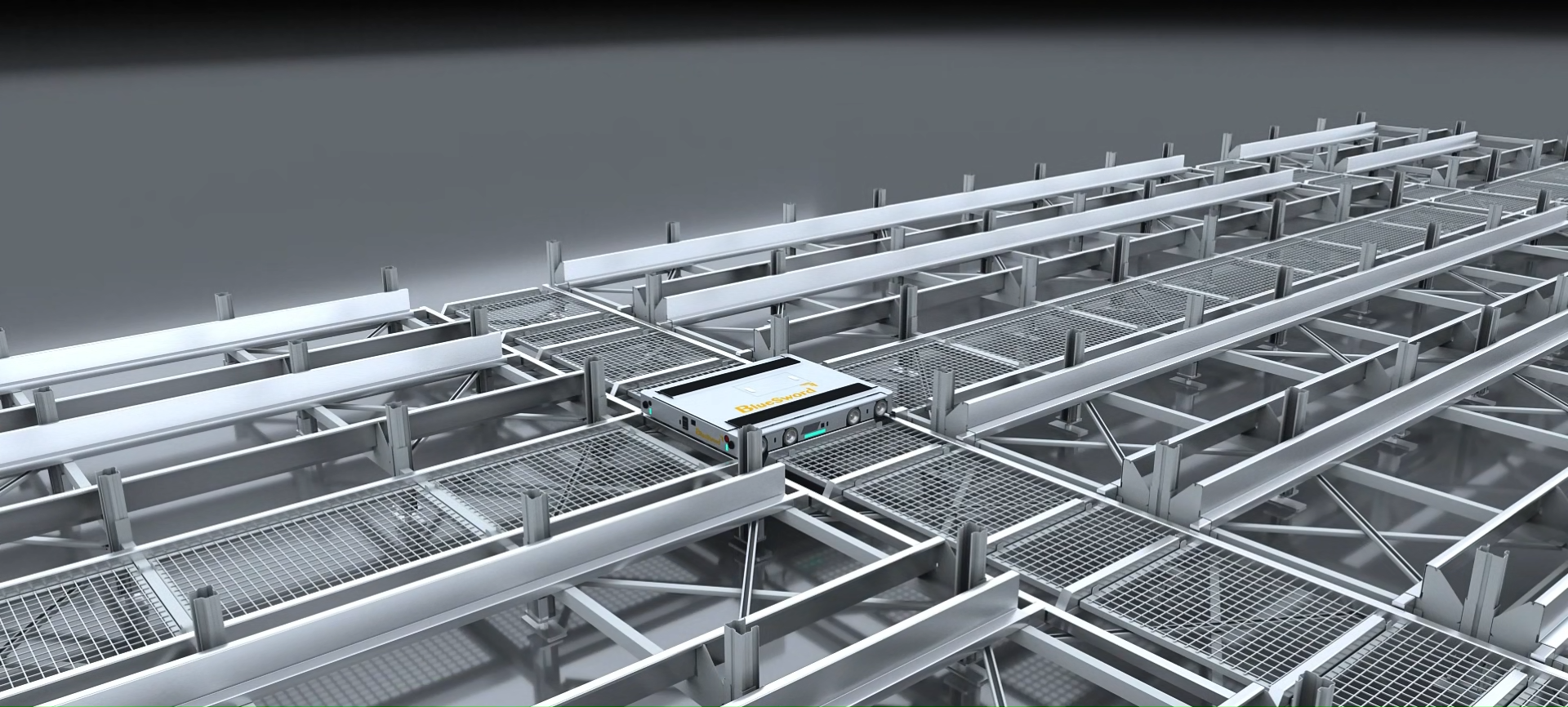

High-Density Four-Way Pallet Shuttle AS/RS
-
Pallet Conveyor -
High-Speed Lift
-
Robotic Arm Palletizer/Depalletizer
-
Four-Way Pallet Shutte
-

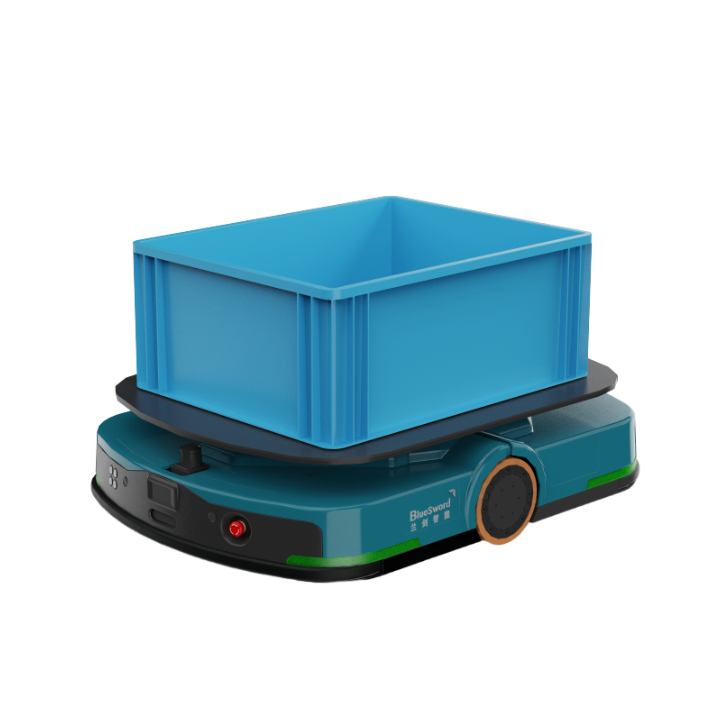

AGV
-
Pallet Conveyor
-
High-Speed Lift
-
Robotic Arm Palletizer/Depalletizer
-
Four-Way Pallet Shutte
-
AGV
Proven Performance Metrics
-
135 MM
Ultra-Slim Body
-
0
Maintenance Required
-
3 T
Max Load Capacity
-
16
All-Drive Wheels
-
8 Hour
Extended Runtime
-
135 MM
Ultra-Slim Body
-
0
Maintenance Required
-
3 T
Max Load Capacity
-
16
All-Drive Wheels
-
8 Hour
Extended Runtime
-
135 MM
Ultra-Slim Body
-
0
Maintenance Required
-
3 T
Max Load Capacity
-
16
All-Drive Wheels
-
8 Hour
Extended Runtime
-
135 MM
Ultra-Slim Body
-
0
Maintenance Required
-
3 T
Max Load Capacity
-
16
All-Drive Wheels
-
8 Hour
Extended Runtime
Benefits at a Glance
-
Ultra-Compact & Heavy-Duty135 mm ultra-slim body maximizes vertical storage space.
1.5 T standard payload (customizable up to 3T) for diverse load demands.
Ultra-Compact & Heavy-Duty135 mm ultra-slim body maximizes vertical storage space.
1.5 T standard payload (customizable up to 3T) for diverse load demands.
-
Maintenance-Free Gear StructureFully interlinked gearbox as the core frame: simple, robust, and near-zero maintenance.
Maintenance-Free Gear StructureFully interlinked gearbox as the core frame: simple, robust, and near-zero maintenance.
-
Four-Way Omnidirectional Drive16 all-drive wheels + BlueSword self-developed controller for superior acceleration and stability.
Servo motor-driven lifting (vs. hydraulic): higher precision, no contamination risk.
Four-Way Omnidirectional Drive16 all-drive wheels + BlueSword self-developed controller for superior acceleration and stability.
Servo motor-driven lifting (vs. hydraulic): higher precision, no contamination risk.
-
All-Scenario AdaptabilityExplosion-proof and low-temperature resistant variants available.
Compatible with all standard pallet types/sizes.
All-Scenario AdaptabilityExplosion-proof and low-temperature resistant variants available.
Compatible with all standard pallet types/sizes.

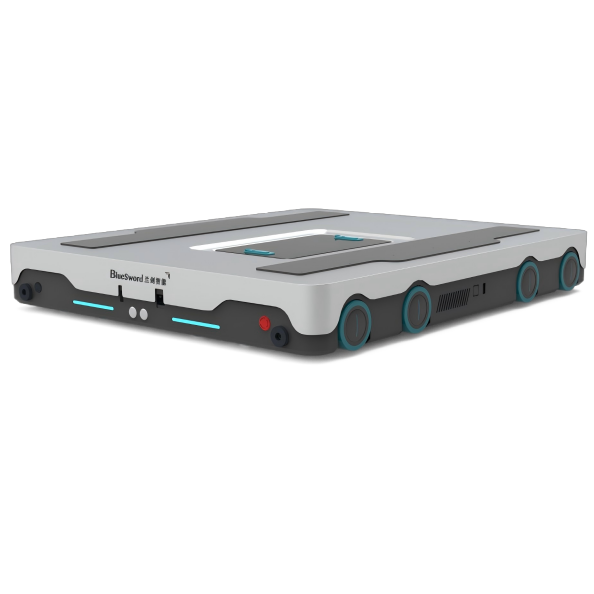

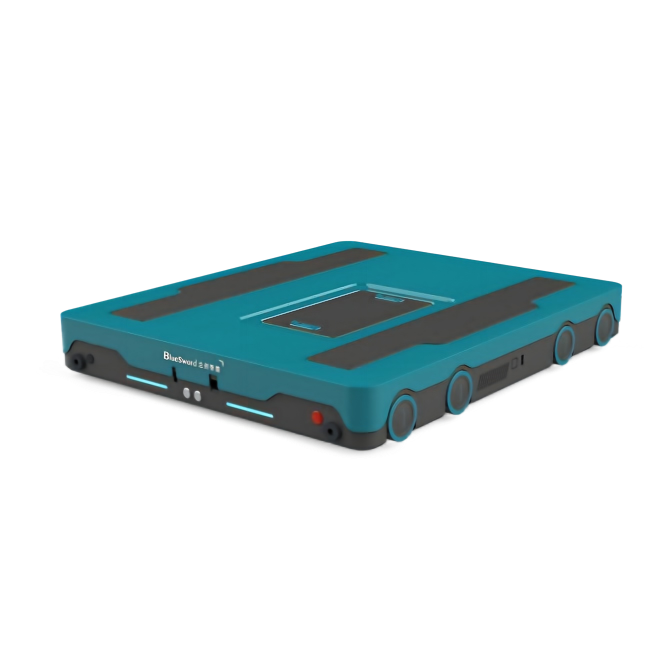

Four-Way Pallet Shuttle
The Four-Way Shuttle delivers unmatched warehouse efficiency with its ultra-slim profile, high payload capacity, and omnidirectional mobility. Engineered for precision and speed, it serves various industries with high-density, high-efficiency, high-flexibility storage solutions.
| Dimensions (L×W×H) | 1150 × 980 × 135 mm |
| Body Weight | 350 kg |
| Travel Speed | 1.5 m/s |
| Acceleration | 0.3 m/s² |
| Positioning Accuracy | ±2 mm |
| Lifting Time | 2.5 s |
| Direction Change Time | 2.5 s |
| Battery Type | LFP Battery |
Your Top Concerns - Q&A
-
Q1:
How does the shuttle handle heavy loads in high-density warehouses?
A:
With a 1.5 T standard payload (upgradable to 3 T) and ultra-slim 135mm height, it maximizes vertical storage while transporting heavy pallets efficiently.
-
Q2:
Is maintenance required for the gear-driven system?
A:
Minimal to none. Our modular design allows quick component swaps without full disassembly, while the sealed structure blocks dust/moisture for reliability. With no chains or belts, wear is drastically reduced—ensuring a longer lifespan and near-zero maintenance.
-
Q3:
Will it work for my industry?
A:
Absolutely. Engineered for cross-industry versatility:
Explosion-proof & cryogenic-resistant - Safely handles hazardous materials and cold chain storage
Servo-driven (no hydraulic oil) meets food/pharma hygiene standards
Adjustable forks accommodate all standard/custom pallets
-
Q4:
What about battery life and charging efficiency?
A:
Our shuttle features intelligent opportunity charging - it automatically docks at charging stations when idle or at low power. The LiFePO4 battery offers over 8 hours of runtime, with fast charging (<2 hours) and 2000+ cycles for 24/7 operations.
ADVANTAGE
The BlueSword Differences
-
30+ Years of ExpertiseWith decades of experience in logistics solution, BlueSword always incorporates the latest cutting-edge technology, thus you can always trust and upgrade.
-
One-Stop Logistics SolutionsWith the industry's most comprehensive product portfolio, BlueSword provides end-to-end logistics solutions tailored to your needs. Whatever you need, BlueSword delivers.
-
AI-Driven Software EcosystemHarnessing machine learning and digital twin tech, our intelligent software optimizes inventory, picking, transporting in real time.
-
Future-Ready ScalabilityModular architecture scales from small warehouses to mega hubs. 20+ industry-tailored packages meet your unique needs.
-
Global Support, Zero Downtime24/7 maintenance across 100+ cities worldwide. Guaranteed 1-hour response and on-site crisis resolution keeps your operations bulletproof.
