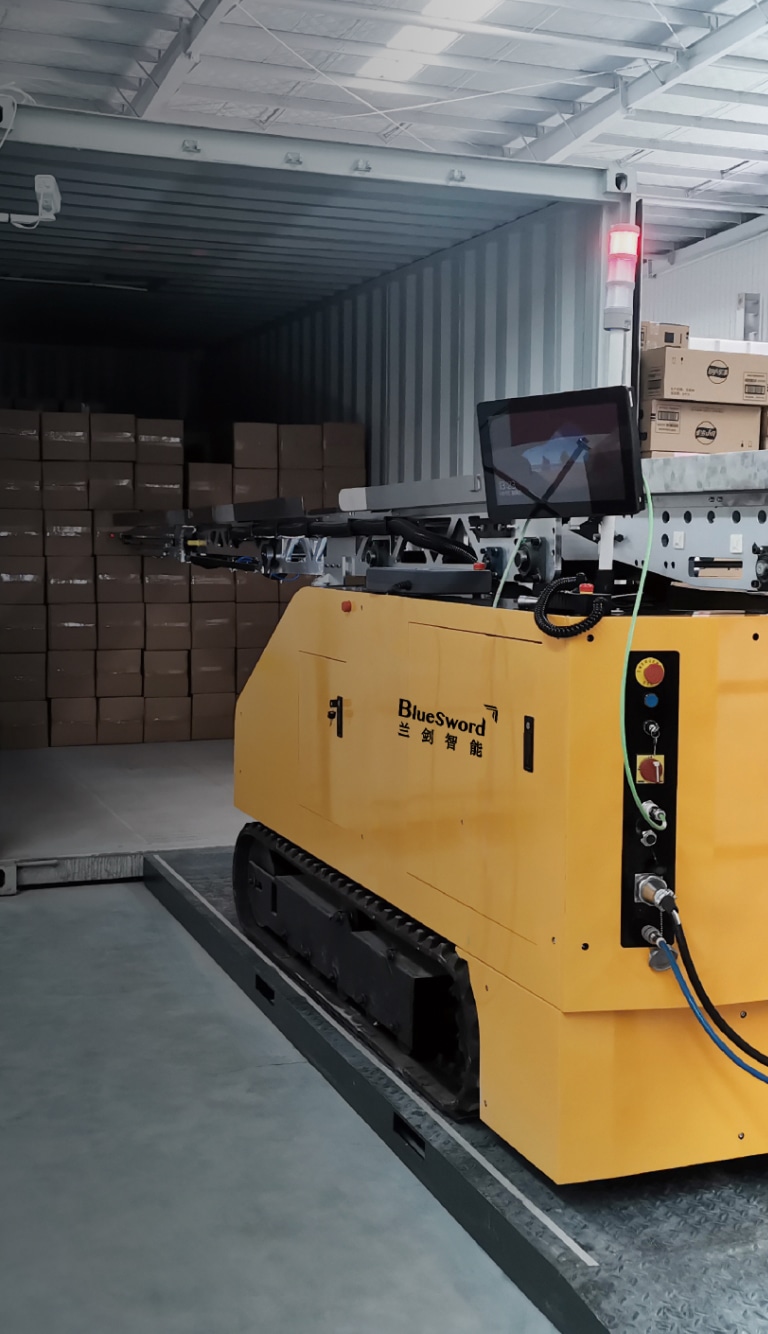

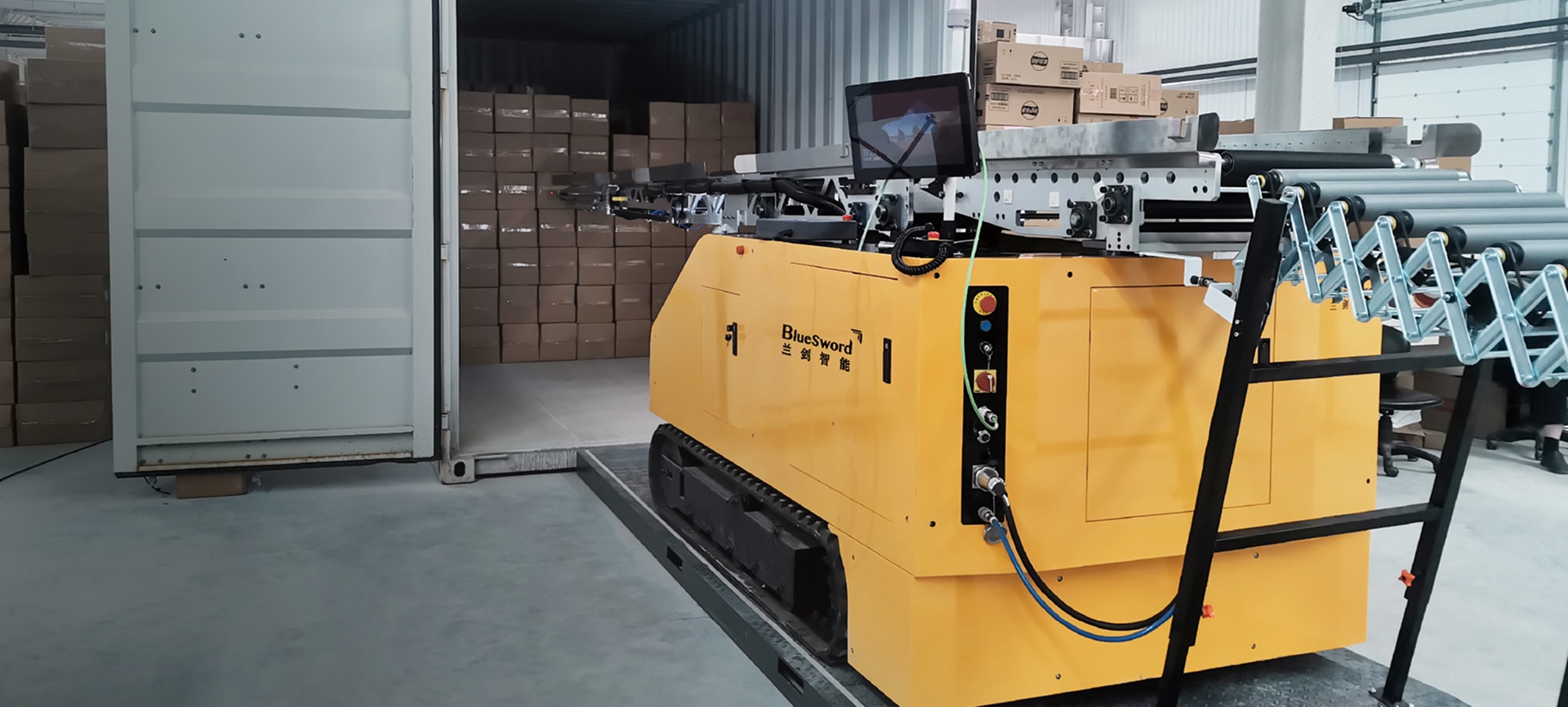

Loading and Unloading Robot
Step One to Higher Efficiency
Bridge your trucks and warehouse seamlessly with BlueSword's advanced loading and unloading robot. Compatible with both manual and automated palletizing, it enables flexible, intelligent handling for box trucks and containers.
Benefits at a Glance
-
High EfficiencyFully automated operation with dual-grip handling, 24/7 availability, and reduced manual errors during loading and unloading.
Alerts can be quickly cleared via a reset button to avoid delays.
High EfficiencyFully automated operation with dual-grip handling, 24/7 availability, and reduced manual errors during loading and unloading.
Alerts can be quickly cleared via a reset button to avoid delays.
-
Cost SavingCut labour and forklift usage, shorten truck waiting time, and boost dock and vehicle utilization.
Cost SavingCut labour and forklift usage, shorten truck waiting time, and boost dock and vehicle utilization.
-
Flexible & VersatileHandle various case sizes and truck types, support both loading and unloading, and adapt to multi-dock environments.
Flexible & VersatileHandle various case sizes and truck types, support both loading and unloading, and adapt to multi-dock environments.
-
Safe & ReliableLaser-SLAM navigation with 360° obstacle avoidance and triple protection for goods, truck, and equipment.
Safe & ReliableLaser-SLAM navigation with 360° obstacle avoidance and triple protection for goods, truck, and equipment.
-
User-FriendlyPlug-and-play deployment, easy operation, fast troubleshooting, and minimal training required.
User-FriendlyPlug-and-play deployment, easy operation, fast troubleshooting, and minimal training required.

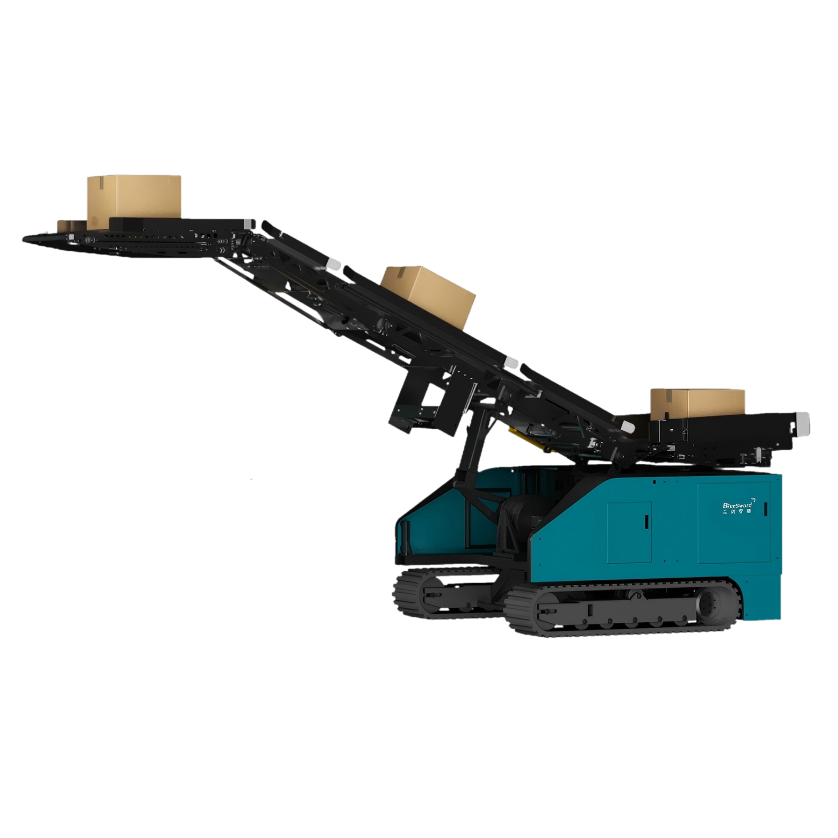

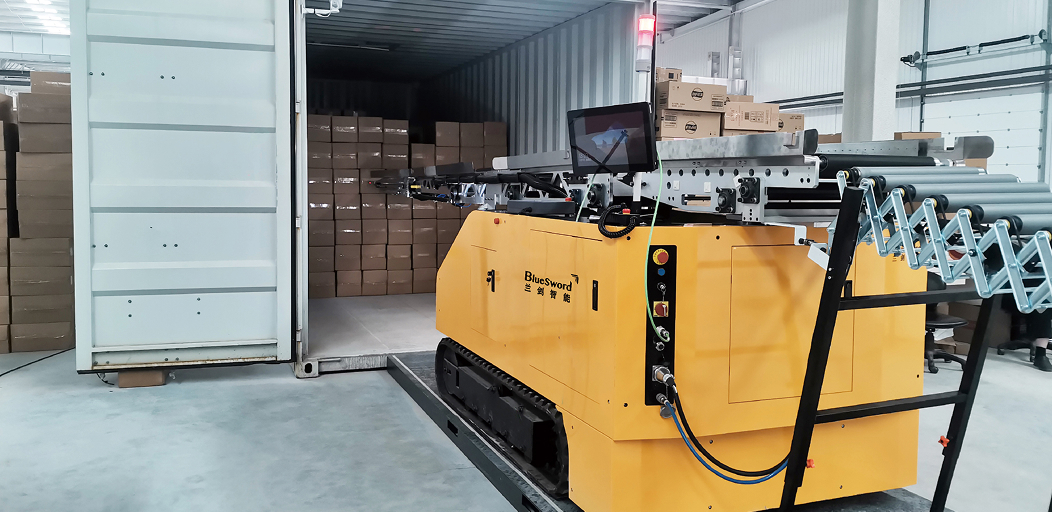

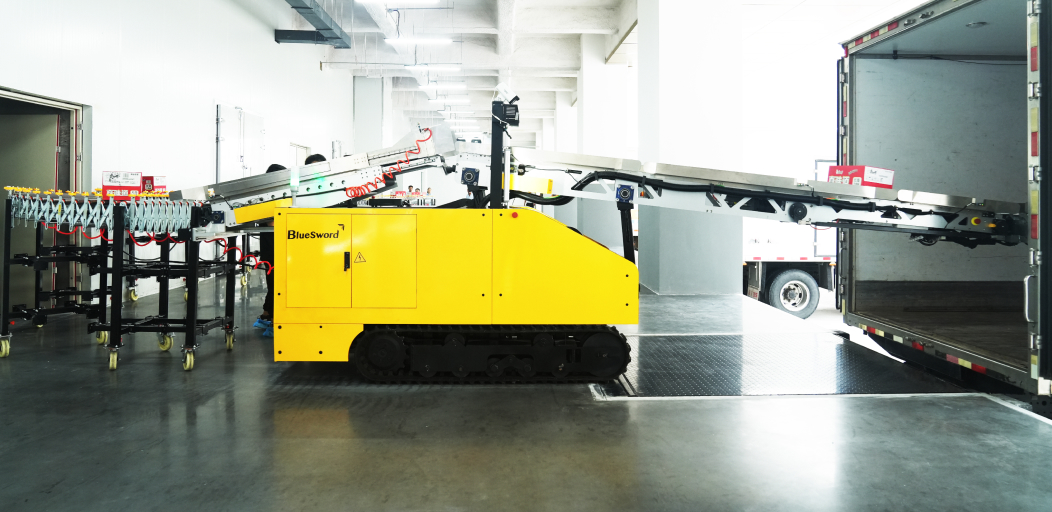

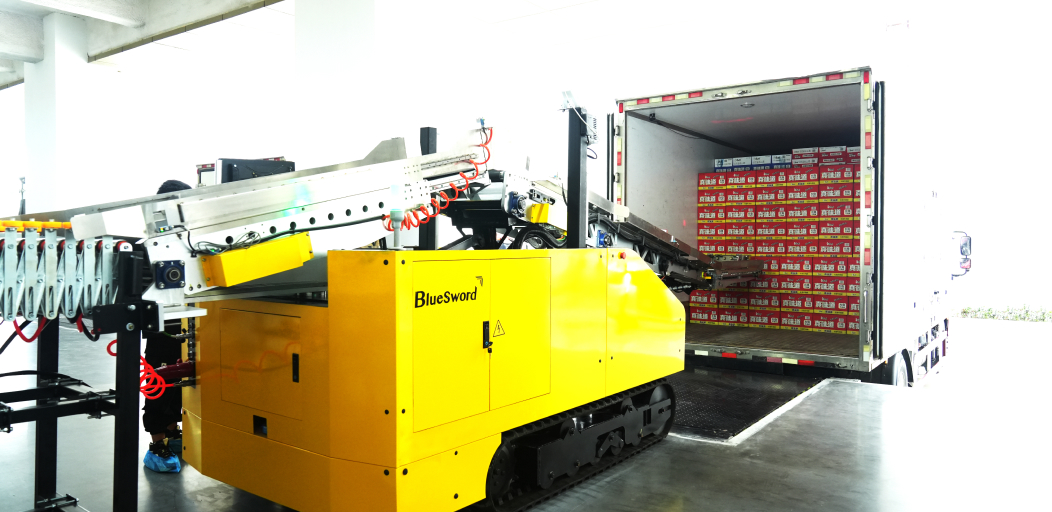

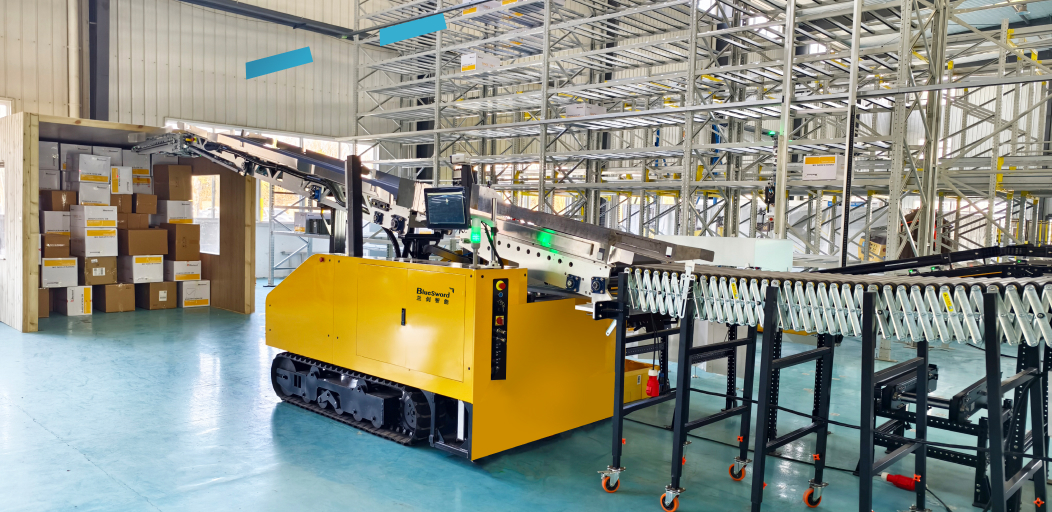

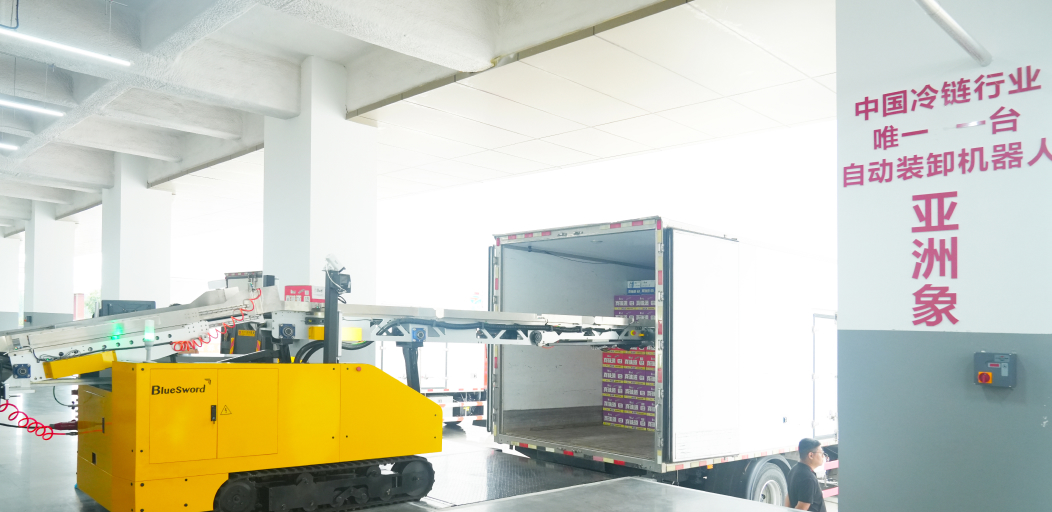

Asian Elephant Robot
Designed for high utilization, it handles corrugated cartons, material bags, and totes with ease. It can be quickly repositioned across multiple loading docks.
| Handling Efficiency | |
| Single-Grip | 500–600 pcs/hour |
| Dual-Grip | 800–1000 pcs/hour |
| Rated Load | 35 kg |
| Max Travel Speed | 0.8 m/s |
| Max Conveyor Speed | 1 m/s |

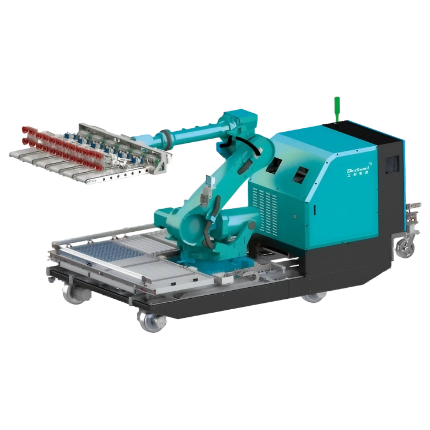

Hammerhead Robot
The Hammerhead Robot is a six-axis robotic solution built for intelligent loading and unloading. It combines industrial-grade stability, multi-pick efficiency, and 3D vision accuracy to handle carton goods with speed and precision — ensuring a smooth, safe, and reliable flow at every dock.
Pick Load Capacity | ≤ 60 kg per pick; 1–4 cartons per cycle |
Carton Size | 200 mm ≤ (L/W/H) ≤ 600 mm |
Applicable Vehicle Types | Vans, container trucks |
Truck Compartment Size | 2.4-2.9 m (W) × 2.5–2.9 m (H) |
Loading Efficiency | Up to 900 pcs/h |
Operating Temperature | -10°C to 40°C |

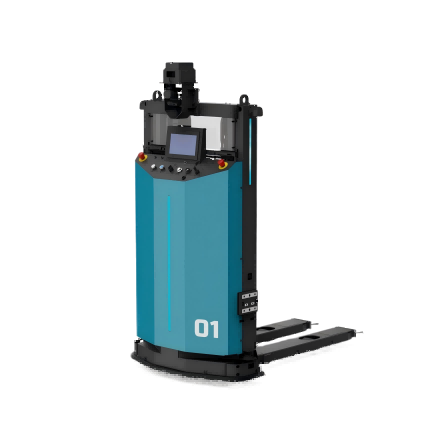

FMR for Discrete Pallet Loading
Designed for point-to-point full pallet handling with rapid deployment. Ideal for trucks and containers.
| Lifting Height | 0.205 m |
| Rated Load | 1 t |
| Compatible with | 2-way or 4-way entry pallets |

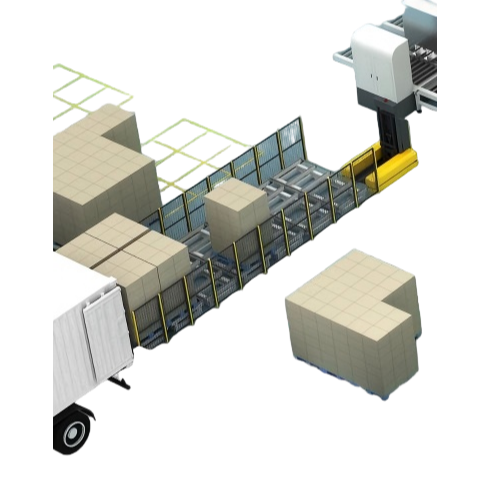

Continuous Pallet Loading System
Achieve exceptional efficiency by pre-stacking goods to reduce waiting time and maximize vehicle and dock utilization.
| Efficiency | 1 truck in 2.5 minutes |
Your Top Concerns - Q&A
-
Q1:
How efficient is the automated loading and unloading system compared to manual operations?
A:
In traditional tobacco industry applications, manual operations typically require 5 workers (2 unloading, 2 palletizing, 1 inbound warehousing) to achieve around 700 cases per hour. In contrast, BlueSword’s loading and unloading robot can handle up to 1,000 cases per hour with dual-grip operation, while running autonomously. When paired with automated palletizing and warehousing systems, it enables fully unmanned operations, lowering labor costs while improving dock throughput.
-
Q2:
What types of goods and environments can the automatic truck loading and unloading system handle?
A:
The loading and unloading system is designed to handle a wide range of goods and operating environments, including:
Corrugated cartons , material bags & totes (up to 35 kg).
Various vans/containers (up to 2,900×3,000 mm, L×W).
Multi-dock facilities with fast, plug-and-play deployment.
-
Q3:
Can this robotic truck loading and unloading solution be integrated with our existing warehouse systems?
A:
Yes. BlueSword's technology integrates seamlessly with both manual and automated palletizing systems. It can also integrate with warehouse management system (WMS), enabling end-to-end automation across the entire loading and unloading workflow.
