AGV & AMR
Move Anything to Anywhere
At the forefront of industrial automation, our AGV & AMR solutions redefine warehouse and factory logistics. These intelligent mobile robots autonomously complete end-to-end material handling workflows, seamlessly integrating with your digital ecosystem to bridge the last mile of your smart factory operations.
Proven Performance Metrics
-
2,000 Kg
Max Load Capacity
-
12 M+
Max Lifting Height
-
20,000+
Annual Production
-
24/7
Continuous Operation
-
2,000 Kg
Max Load Capacity
-
12 M+
Max Lifting Height
-
20,000+
Annual Production
-
24/7
Continuous Operation
-
2,000 Kg
Max Load Capacity
-
12 M+
Max Lifting Height
-
20,000+
Annual Production
-
24/7
Continuous Operation
-
2,000 Kg
Max Load Capacity
-
12 M+
Max Lifting Height
-
20,000+
Annual Production
-
24/7
Continuous Operation
Benefits at a Glance
-
Agile & EfficientBezier control algorithm enables stable, high-speed operation.
Precise multi-tech navigation: SLAM, QR, texture.
Quick mapping and real-time update for dynamic adaptability.
Omni-directional tri-wheel drive: 40% smaller turning radius vs dual-steering systems with easy wheel maintenance.
Agile & EfficientBezier control algorithm enables stable, high-speed operation.
Precise multi-tech navigation: SLAM, QR, texture.
Quick mapping and real-time update for dynamic adaptability.
Omni-directional tri-wheel drive: 40% smaller turning radius vs dual-steering systems with easy wheel maintenance.
-
Safe & Reliable360° LiDAR + 3D vision obstacle detection: Multi-layer protection with overhead/ground-level coverage.
Multi-sensor safety system: Combines audio-visual alarms, safety bumpers & emergency stops.
24/7 Continuous Operation: Industrial-grade reliability (-20°C to 60°C operating range).
Safe & Reliable360° LiDAR + 3D vision obstacle detection: Multi-layer protection with overhead/ground-level coverage.
Multi-sensor safety system: Combines audio-visual alarms, safety bumpers & emergency stops.
24/7 Continuous Operation: Industrial-grade reliability (-20°C to 60°C operating range).
-
Intelligent Perception3D spatial detection for identifying goods and enabling real-time adjustments.
Idiot-proof design to minimize human error.
Intelligent Perception3D spatial detection for identifying goods and enabling real-time adjustments.
Idiot-proof design to minimize human error.
-
High ROIDigital Twins: BlueSword’s proprietary platform for realistic simulation and testing.
Plug-and-play deployment in diverse, complex application scenarios.
High ROIDigital Twins: BlueSword’s proprietary platform for realistic simulation and testing.
Plug-and-play deployment in diverse, complex application scenarios.
-

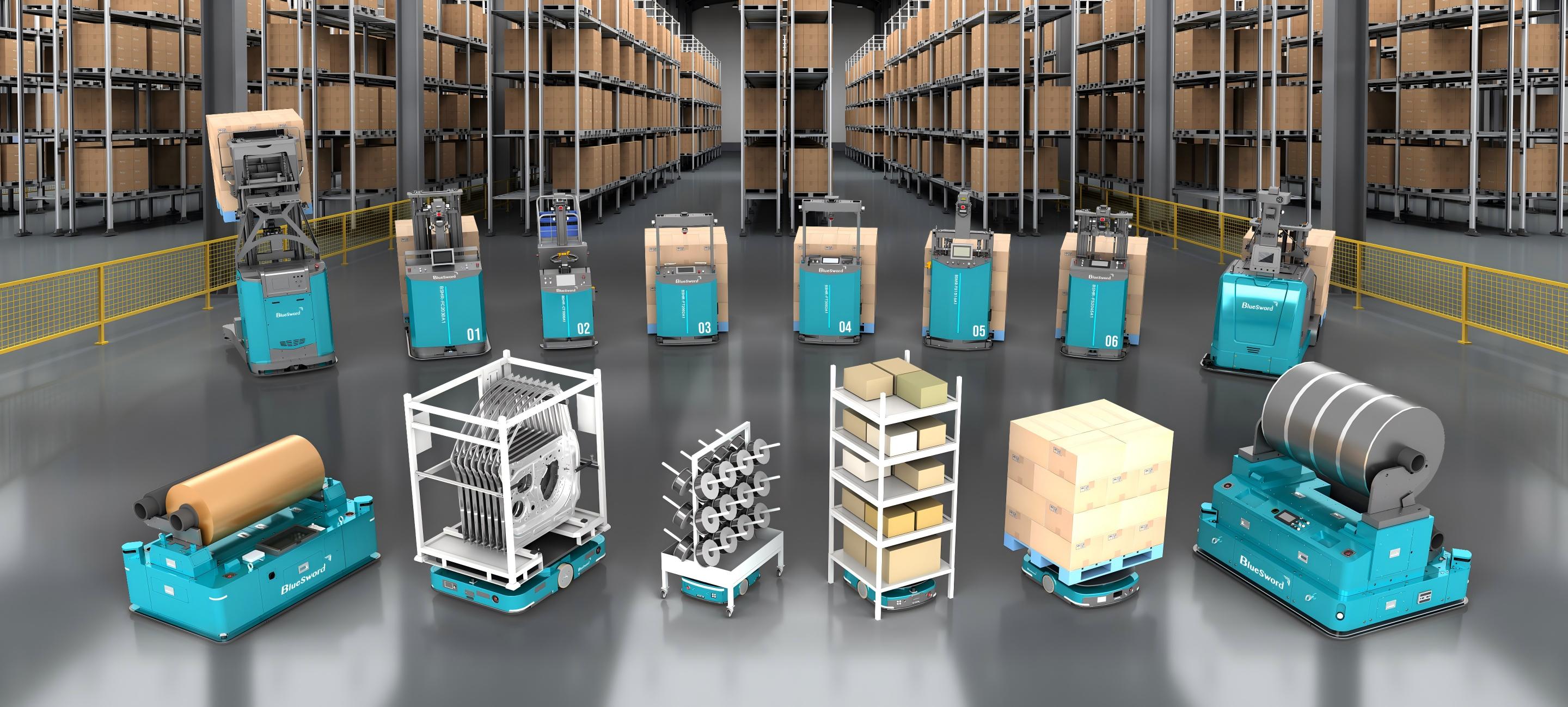

Versatile OptionsMulti-format robot portfolio: LMR, FMR, CRM.
Wide load capacity range from 400 kg to 3,000 kg.
Standard features: front-mounted lasers, collision sensors, emergency stop, and audio-visual alerts.
Customizable options: 3D vision obstacle avoidance, rear lasers, ultrasonic sensors, laser warning lights, 5G modules, and more.
Versatile OptionsMulti-format robot portfolio: LMR, FMR, CRM.
Wide load capacity range from 400 kg to 3,000 kg.
Standard features: front-mounted lasers, collision sensors, emergency stop, and audio-visual alerts.
Customizable options: 3D vision obstacle avoidance, rear lasers, ultrasonic sensors, laser warning lights, 5G modules, and more.

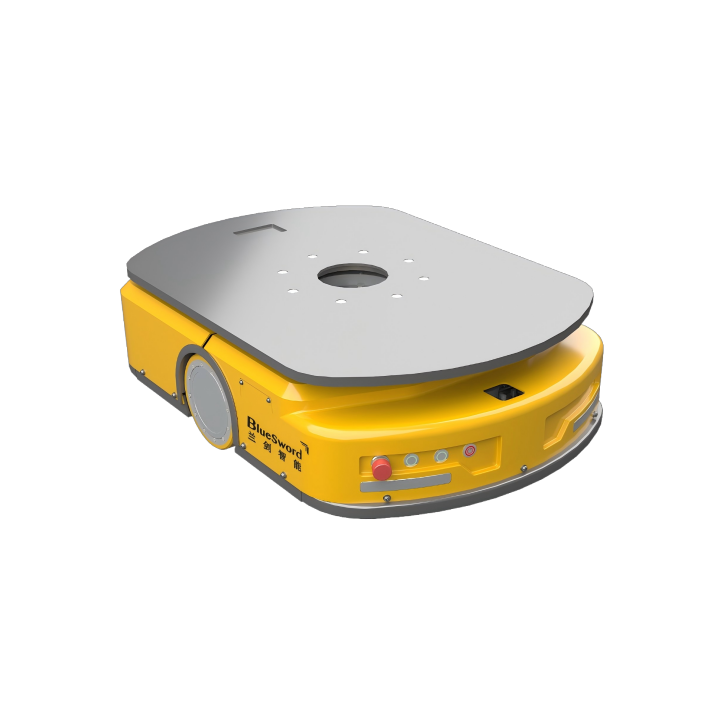

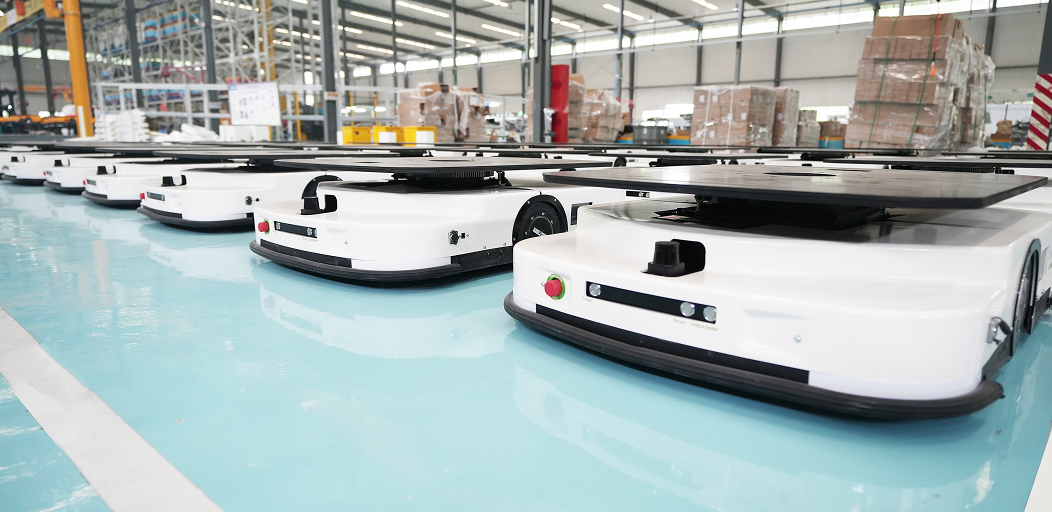

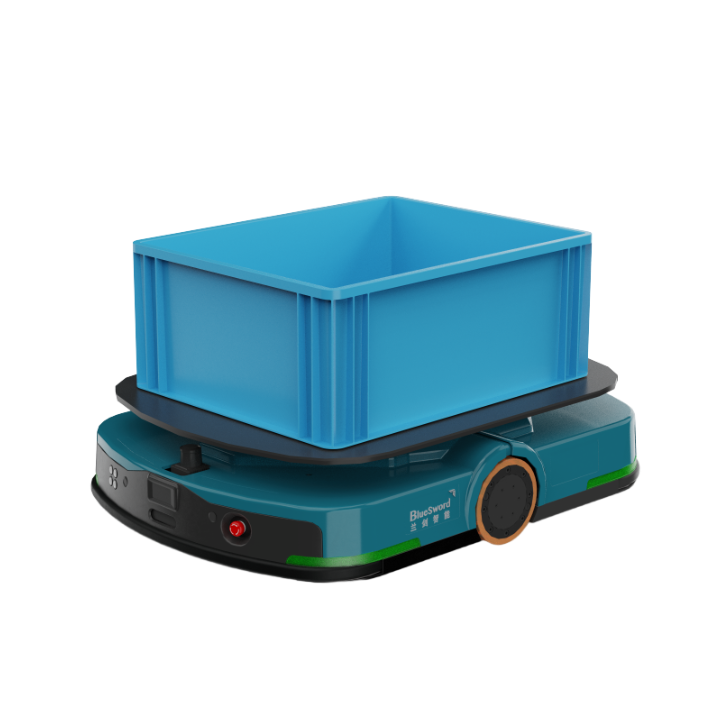

Latent Mobile Robot
The Latent Mobile Robot (LMR) is an automated material handling device with a compact and flexible design. It excels in flat warehouse environments and production line delivery scenarios, offering efficient lifting and transporting capabilities tailored for dynamic spaces.
| Rated Load | 400 - 2,000 kg |
| Lifting Height | 60 - 100 mm |
| No-Load Speed | 1 - 2.5 m/s |
| Climbing Capacity | 3% (full load); 5% (no load) |
| Positioning Accuracy | ±10 mm; ±1° |
| Dive Type | Differential drive |
| Navigation Type | QR Code / VSLAM/ LSLAM |

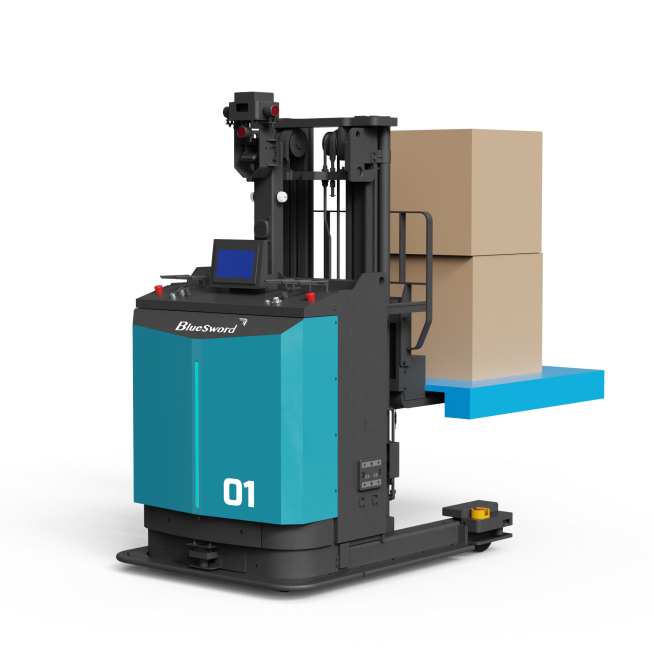

Transfer FMR
The Transfer Forklift Mobile Robot (FMR) is a heavy-duty automated logistics solution designed for high-lift operations, commonly used for transporting and handling shelves or large loads.
| Rated Load | 2,000 / 3,000 kg |
| Body Weight | 650 / 720 kg |
| Lifting Height | Up to 205 mm |
| Gradability | 3% (full load); 5% (no load) |
| Positioning Accuracy | ±10 mm |
| Charging Time | ≤3 hours |

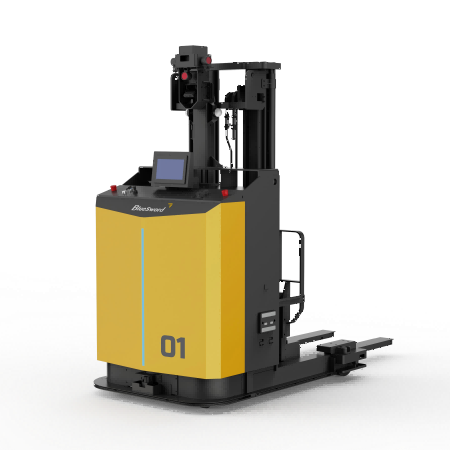

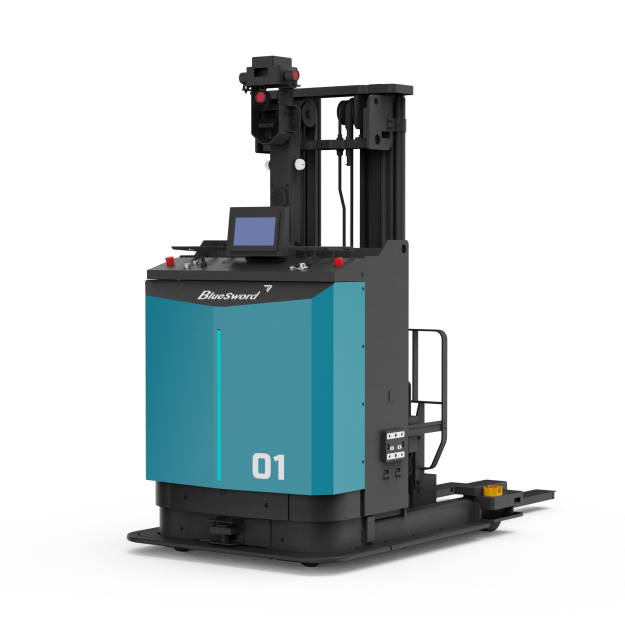

Reach Truck FMR
Compact, agile, and packed with advanced features—walking, steering, lifting, reach, retract, fork adjustment, side-shifting, and tilt. Perfect for seamless pallet handling across floors, conveyors, and high racks.
| Rated Load | 1,600 / 2,500 kg |
| Body Weight | 2,300 / 5,038 kg |
| Lifting Height | Up to 12,000 mm |
| Gradability | 3% (full load); 5% (no load) |
| Positioning Accuracy | ±10 mm |
| Charging Time | ≤2 hours |

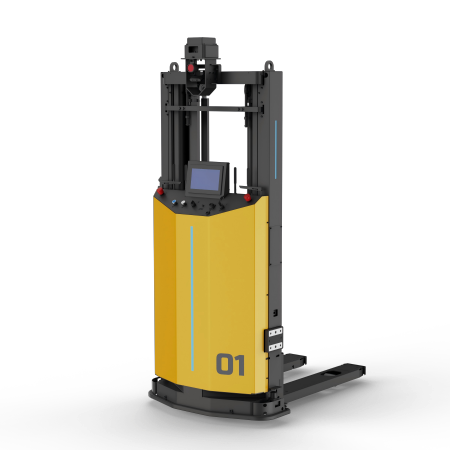

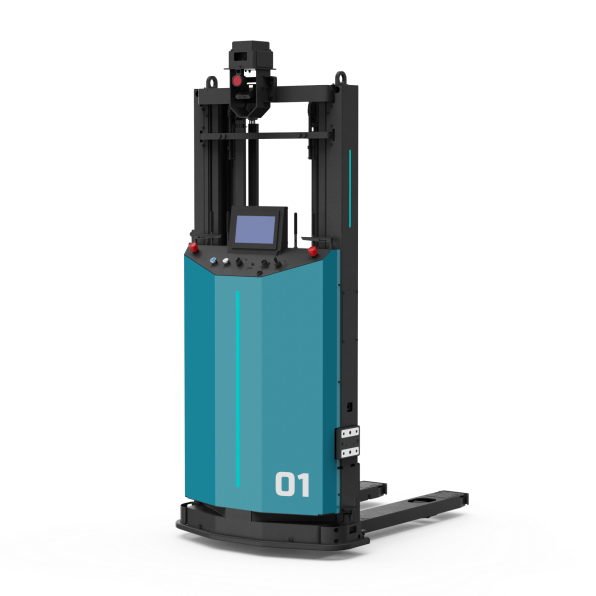

Stacker FMR
Upgrade your standard warehouses and 3-level racking systems effortlessly. No construction needed—just plug & play. Convert existing forklifts for automation, slash costs, and boost efficiency in one go.
| Rated Load | 1,500 / 2,000 kg |
| Body Weight | 980 / 1,010 / 1,098 / 1,300 kg |
| Lifting Height | Up to 4,585 mm |
| Gradability | 3% (full load); 5% (no load) |
| Positioning Accuracy | ±10 mm |
| Charging Time | ≤2 hours |

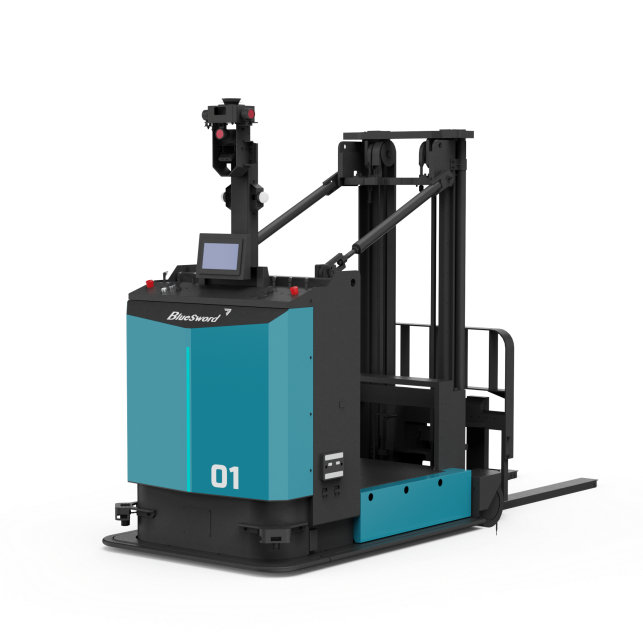

Counterbalance FMR
| Rated Load | 2,000 / 3,000 kg |
| Body Weight | 3,100 / 4,700 kg |
| Lifting Height | Up to 4,500 mm |
| Gradability | 3% (full load); 5% (no load) |
| Positioning Accuracy | ±10 mm |
| Charging Time | ≤3 hours |

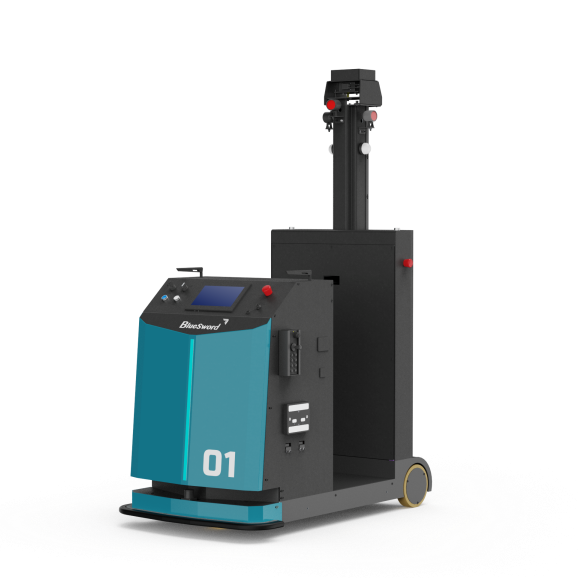

Tugger Mobile Robot
The ForkLift-TT-5.0 is a heavy-duty tugger AGV with a rated towing capacity of 5 tons. It supports customized automatic hitching/de-hitching for convoy operations and features human-machine interaction capabilities, making it ideal for long-distance heavy-load tugging applications.
| Rated Tugging Capacity | 1,000 kg |
| Tugging Height Adjustment Range | 80-380 mm |
| Max. Gradeability | 3° |
| Positioning Accuracy | ±10 mm |
| Charging Time | ≤2 hours |

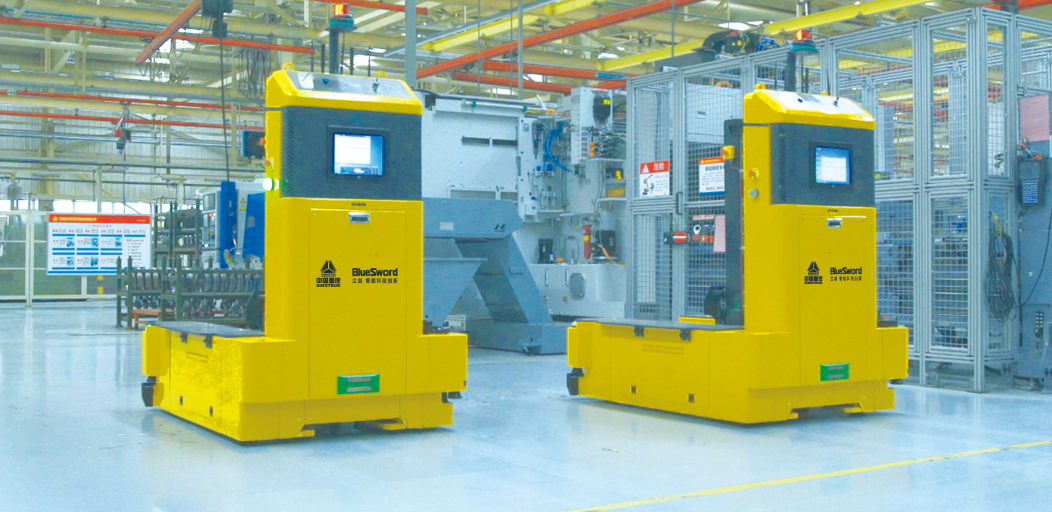

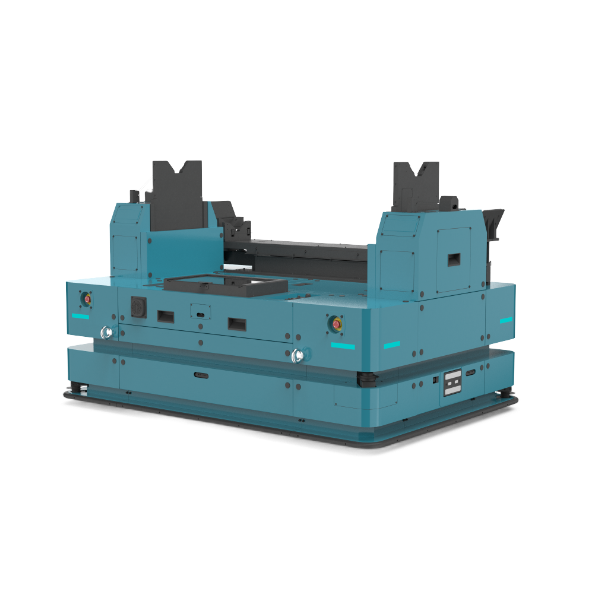

Conveyor Mobile Robot
The Conveyor Mobile Robot (CMR) is a heavy-duty, omni-directional automated material handling device designed for the transportation of large items, commonly used in industries such as lithium batteries, automotive, and construction machinery.
| Rated Load Capacity | 1,500 / 3,500 kg |
| Body Weight | 1,200 / 1,800 kg |
| Main-Lifting Height | 700 / 230 mm |
| Sub-Lifting Height | 700 / 900 mm |
Gradeability | 3% (full load) / 5% (no load) |
| Positioning Accuracy | ±10 mm / ±1° |
| Charging Time | ≤1.5 h |
| Drive System | Dual-steering wheel configuration |
Your Top Concerns - Q&A
-
Q1:
How do BlueSword AGV/AMR systems ensure operational safety?
A:
Our robots integrate multiple safety mechanisms:
360° LiDAR and 3D vision obstacle detection for real-time environmental awareness.
Multi-sensor system combining audio-visual alarms, safety bumpers, and emergency stop buttons.
Industrial-grade components tested for 24/7 operation in extreme temperatures (-20°C to 60°C).
-
Q2:
Can these robots adapt to complex warehouse layouts?
A:
Yes, our solutions offer:
Multi-technology navigation (laser SLAM, QR codes, texture navigation).
Quick mapping with real-time updates for dynamic environments.
Compact tri-wheel drive with 40% smaller turning radius than traditional systems.
-
Q3:
What ROI can we expect from implementation?
A:
Key value drivers include:
Digital Twin platform for pre-deployment simulation and optimization.
Plug-and-play deployment reducing integration time.
Load capacity from 400 kg to 3,000 kg to match operational needs.
Typical ROI: 6-12 months for labor-intensive workflows.
-
Q4:
Can the system scale with growing business demands?
A:
Our modular solutions allow seamless scaling:
Multi-format robot portfolio (Latent/Forklift/Conveyor Mobile Robots).
Flexible navigation compatibility across mixed fleets.
Customizable options: 5G modules, ultrasonic sensors, etc.
ADVANTAGE
The BlueSword Differences
-
30+ Years of ExpertiseWith decades of experience in logistics solution, BlueSword always incorporates the latest cutting-edge technology, thus you can always trust and upgrade.
-
One-Stop Logistics SolutionsWith the industry's most comprehensive product portfolio, BlueSword provides end-to-end logistics solutions tailored to your needs. Whatever you need, BlueSword delivers.
-
AI-Driven Software EcosystemHarnessing machine learning and digital twin tech, our intelligent software optimizes inventory, picking, transporting in real time.
-
Future-Ready ScalabilityModular architecture scales from small warehouses to mega hubs. 20+ industry-tailored packages meet your unique needs.
-
Global Support, Zero Downtime24/7 maintenance across 100+ cities worldwide. Guaranteed 1-hour response and on-site crisis resolution keeps your operations bulletproof.
