High Speed Lift
Transforming 2D storage into 3D efficiency
The High-Speed Lift is the critical link that transforms traditional 2D warehousing into high-density 3D storage systems. Engineered for seamless vertical integration, it enables ultra-fast, continuous movement of totes, pallets, and shuttle robots between storage levels.
Benefits at a Glance
-
Stable StructureFrame design with counterweights ensures stability during high-speed operation and acceleration/deceleration.
Enable higher speeds/acceleration with the same power.
Stable StructureFrame design with counterweights ensures stability during high-speed operation and acceleration/deceleration.
Enable higher speeds/acceleration with the same power.
-
Efficient & PrecisionEquipped with high-performance servo motors and synchronous belt drives for rapid vertical movement (up to 6 m/s speed, 6 m/s² acceleration).
±2mm positioning accuracy achieved via servo motors, belt drives, and external encoders.
Efficient & PrecisionEquipped with high-performance servo motors and synchronous belt drives for rapid vertical movement (up to 6 m/s speed, 6 m/s² acceleration).
±2mm positioning accuracy achieved via servo motors, belt drives, and external encoders.
-
Customizable DesignCompact footprint tailored to case dimensions.
Flexible height options for varying facility requirements.
Configurable with single/dual/multiple loading platforms to match efficiency needs.
Customizable DesignCompact footprint tailored to case dimensions.
Flexible height options for varying facility requirements.
Configurable with single/dual/multiple loading platforms to match efficiency needs.
-
Enhanced SafetyTriple protection: limit switches, anti-collision buffers, and balanced counterweights for equipment, cargo, and personnel safety.
Enhanced SafetyTriple protection: limit switches, anti-collision buffers, and balanced counterweights for equipment, cargo, and personnel safety.

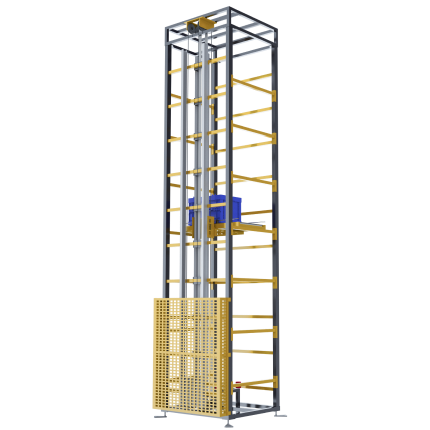

Shuttle Level-Changing Lift
Used for vertically transporting cases/shuttles, enabling rapid movement to different rack levels.
| Max Load Capacity | 200 kg |
| Max Lifting Speed | 180 m/min |
| Max Acceleration | 2 m/s² |
| Positioning Accuracy | ±2 mm |
| Conveying Speed (Loading Platform) | 0.25 m/s |
| Min Pickup Height | 500 mm |

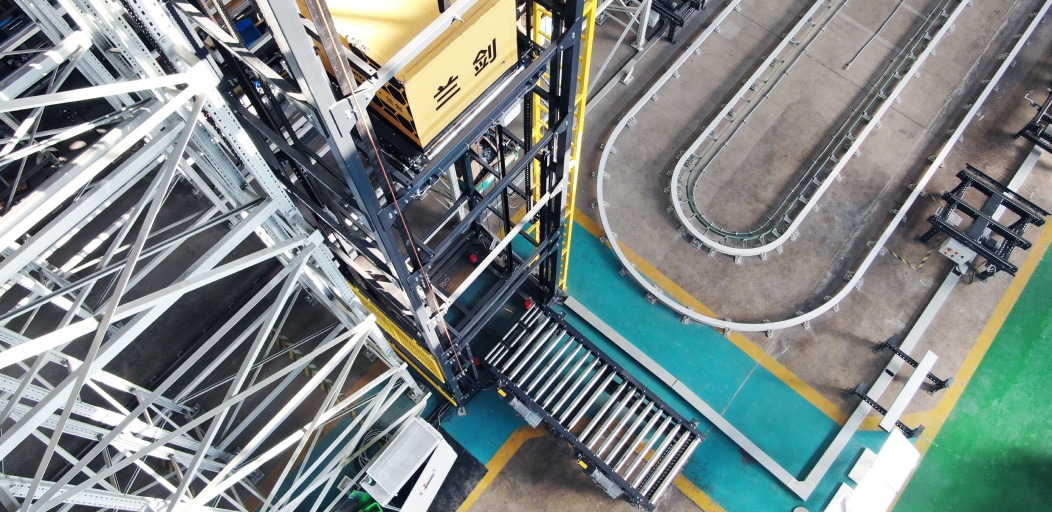

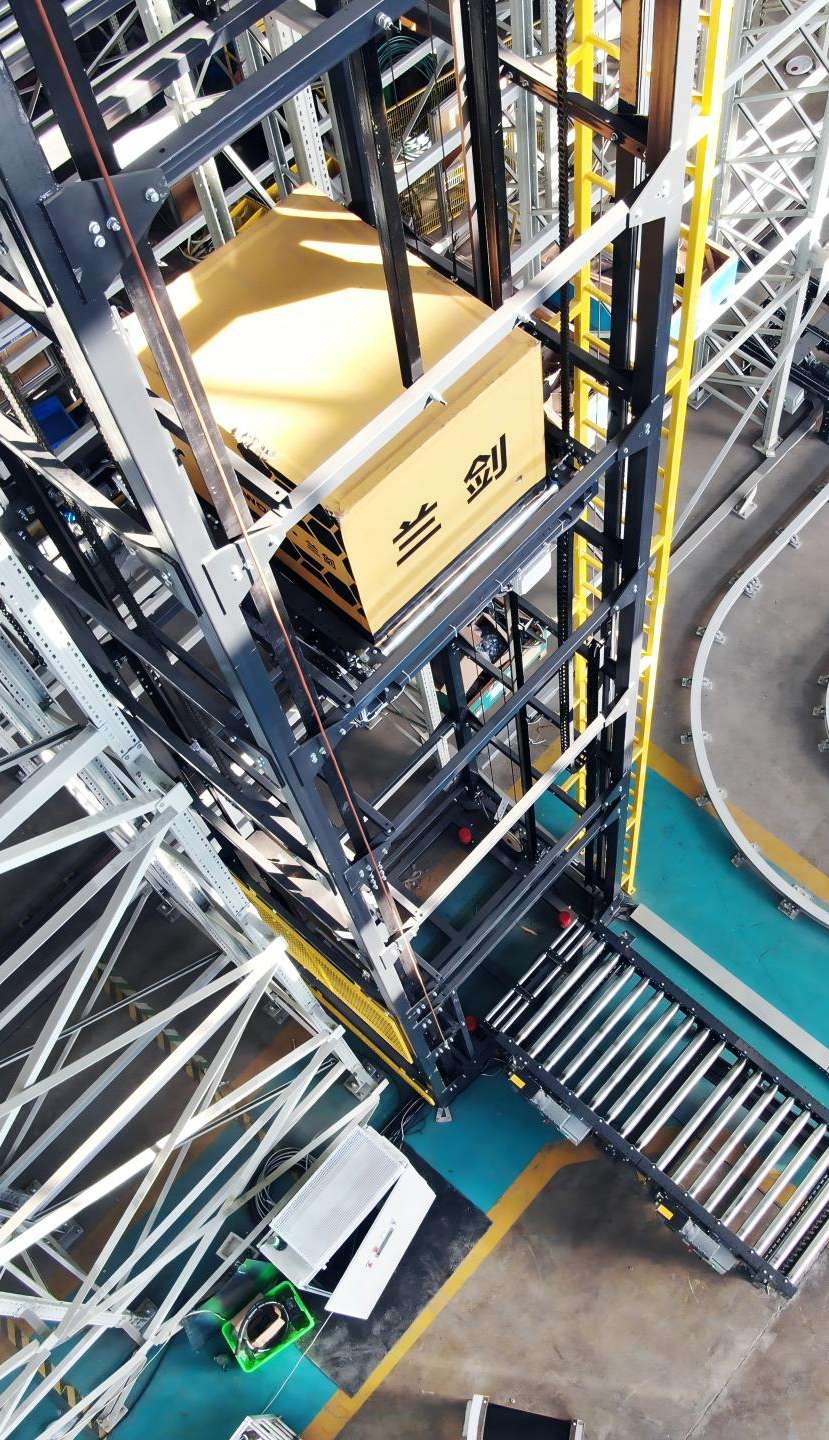

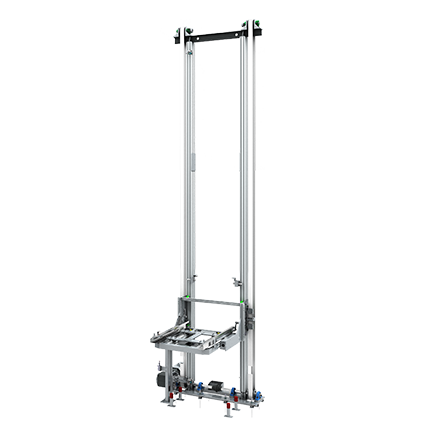

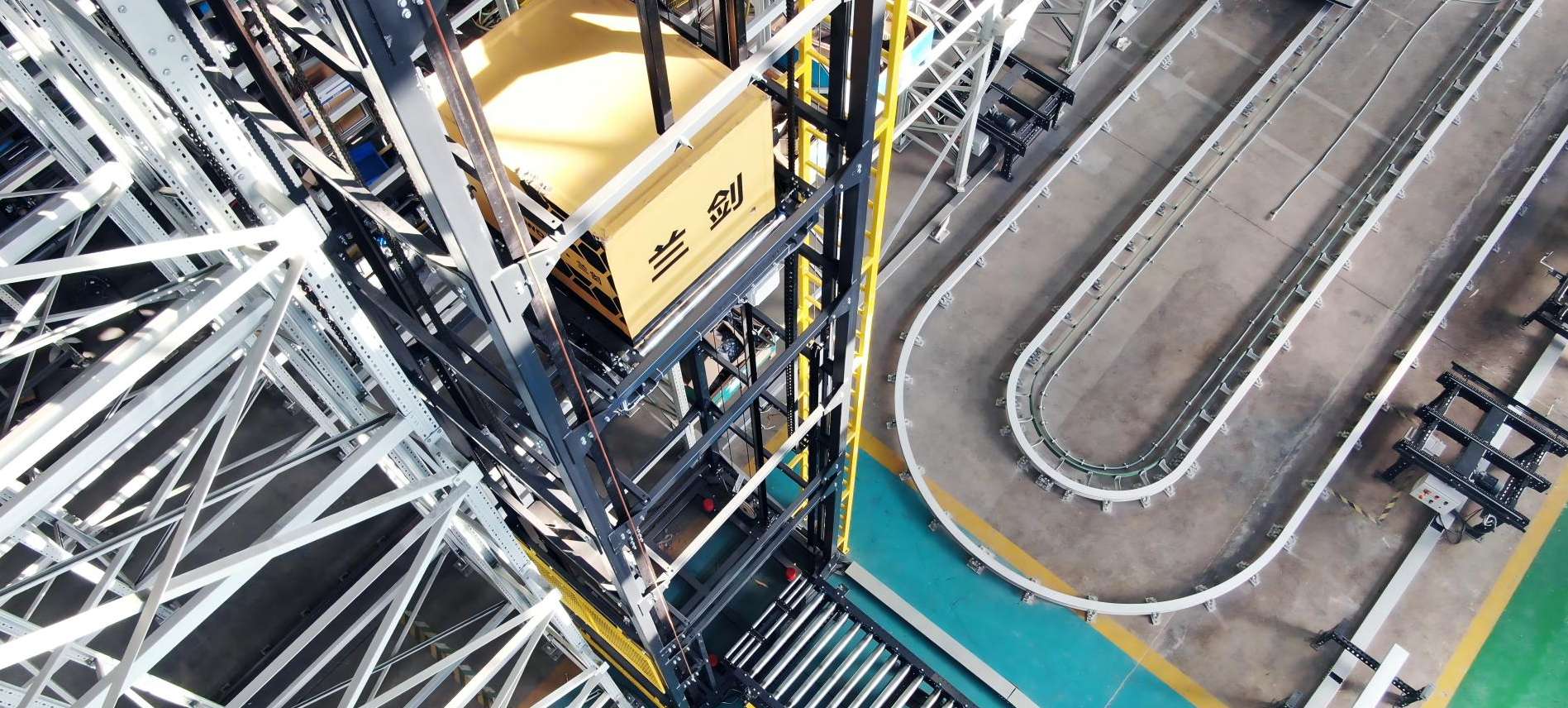

Case Lift
Designed for vertical case transportation with reciprocating lifting motion.
| Max Load Capacity | 100 kg |
| Max Lifting Speed | 360 m/min |
| Max Acceleration | 6 m/s² |
| Positioning Accuracy | ±2 mm |
| Conveying Speed (Loading Platform) | 0.5 m/s |
| Min Pickup Height | 500 mm |
Your Top Concerns - Q&A
-
Q1:
Can the lifts be customized for my warehouse?
A:
Yes! We offer:
Adjustable heights to fit varying facility requirements.
Single/Dual/Multi-platform configurations to match throughput needs.
Compact footprints tailored to bin or shuttle dimensions.
-
Q2:
What safety measures are in place?
A:
Our triple-layer protection includes:
Limit switches to prevent overtravel.
Anti-collision buffers for impact protection.
Balanced counterweights to stabilize loads.
