Kangaroo Case Stack Access Robot
The Kangaroo Case Stack Access Robot is an intelligent, rack-free stacking solution for automated tote transport and flexible picking, offering high storage density, cost efficiency, and adaptable deployment for any warehouse.

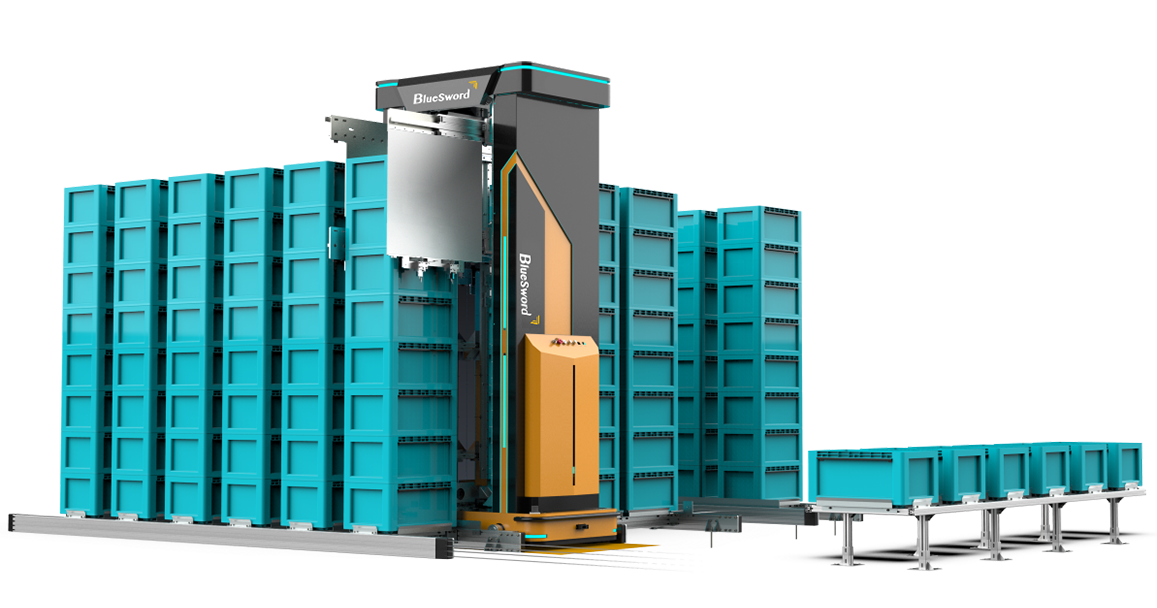

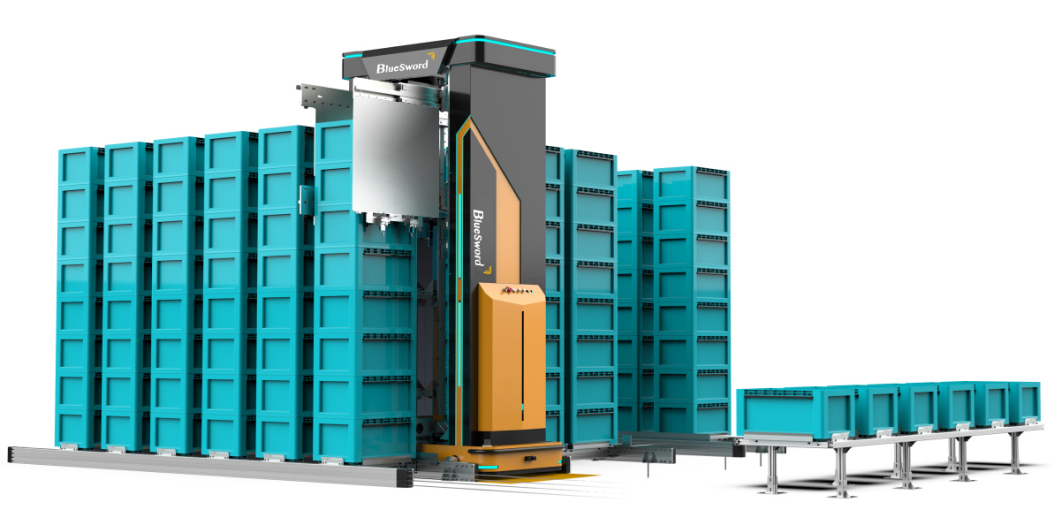

Kangaroo Rack-Free System
-
No racking required for flexible storage -
Store up to 11 layers of totes
-
Retrieve up to 10 layers of totes at once
-
Stable movement on flat ground or rails
-
No racking required for flexible storage
-
Store up to 11 layers of totes
-
Retrieve up to 10 layers of totes at once
-
Stable movement on flat ground or rails

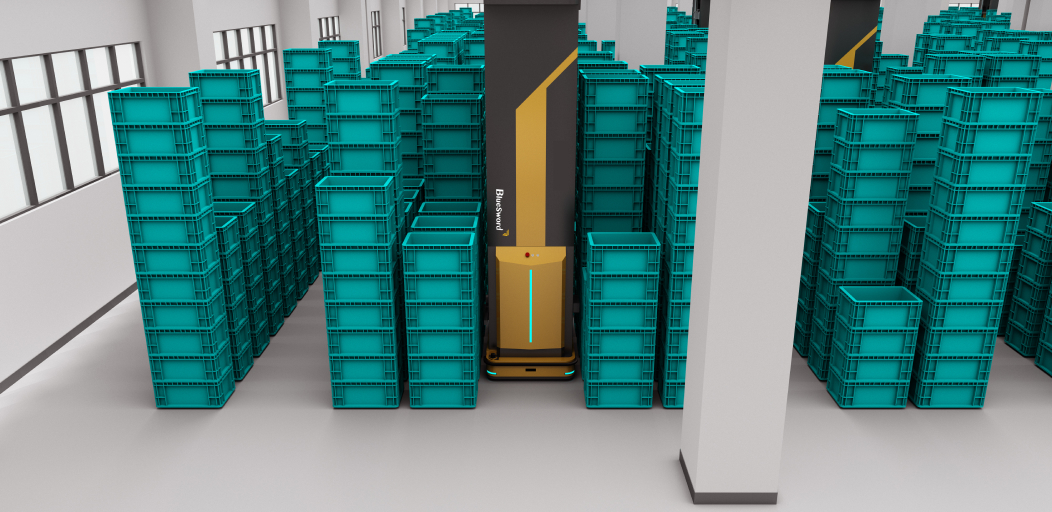

Application Scenarios
-
Warehouses with low ceiling heights, light load capacity, small and scattered available space
-
Environments where shelving systems are impractical
-
Multi-level warehouses or line-side warehouses (temporary storage warehouses)
Benefits at a Glance
-
High Storage DensityDirect stacking eliminates rack height loss, significantly boosting storage density.
High Storage DensityDirect stacking eliminates rack height loss, significantly boosting storage density.
-
Low-Cost SetupStore up to 11 layers of totes without the need for racks, reducing warehouse construction costs.
Low-Cost SetupStore up to 11 layers of totes without the need for racks, reducing warehouse construction costs.
-
High Access EfficiencyEfficiently stack and retrieve up to 10 layers of totes at once.
High Access EfficiencyEfficiently stack and retrieve up to 10 layers of totes at once.
-
Flexible PickingNo need to pick totes sequentially—easily select one or multiple totes from any stacked layer.
Flexible PickingNo need to pick totes sequentially—easily select one or multiple totes from any stacked layer.
-
Versatile & AdaptableCompatible with various tote dimensions, making it suitable for diverse scenarios.
Versatile & AdaptableCompatible with various tote dimensions, making it suitable for diverse scenarios.
-
Flexible & RelocatableCan be deployed anywhere with no storage limitations and quickly relocated.
Flexible & RelocatableCan be deployed anywhere with no storage limitations and quickly relocated.
-
Plug-and-Play DeploymentQuick setup with vertical online deployment and a rapid return on investment.
Plug-and-Play DeploymentQuick setup with vertical online deployment and a rapid return on investment.

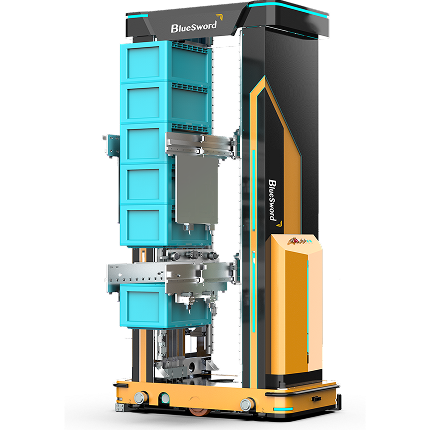

Kangaroo Case Stack Access Robot
Automated Guided Mode
Max. Travel Speed: 3 m/s
Positioning Accuracy: ±3 mm
Angular Accuracy: ±0.5°
Min. Aisle Width: 1,000 mm
Rail Guided Mode
Max. Travel Speed: 1.5 m/s
Positioning Accuracy: ±5 mm
Angular Accuracy: ±1°
Min. Aisle Width: 1,200 mm
| Drive Method | RGV Four-Wheel Drive or Differential Drive |
| Pickup Method | Bidirectional, Single-Deep, and Clamp-Type |
| Recognition Method | 2D Vision Recognition |
| Max Total Load | 200 / 250 / 300 kg |
| Max Fork Lift Speed | 1 / 0.6 / 0.8 m/s |
| Internal Stacking Capacity | 6 / 8 / 11 (280 mm-high tote) |
| Full Charge Time | ≤2 h |
| Endurance Time | ≥6 h |
Your Top Concerns - Q&A
-
Q1:
How does the Kangaroo Robot achieve high storage density without racks?
A:
By eliminating traditional shelving systems and enabling direct vertical stacking of up to 11 layers, the Kangaroo Robot maximizes vertical space utilization. This reduces wasted height gaps between racks, boosting storage density by up to 50% compared to conventional systems.
-
Q2:
Is this system suitable for warehouses with low ceilings or limited space?
A:
Absolutely. The Kangaroo Robot is designed for environments with low ceilings, scattered storage areas, or multi-level facilities. Its rack-free design and compact footprint (min. aisle width: 1,000–1,200 mm) make it ideal for small or irregularly shaped spaces.
-
Q3:
What types of cases are compatible?
A:
Our standard plastic tote dimensions are 600 × 400 × 280mm (L×W×H), with a 30kg load capacity per tote. However, the Kangaroo Robot is highly adaptable and can be customized to handle different tote sizes, weights, and materials. Whether you require larger totes, heavier payloads, or specialized shapes, our team can adjust the clamp mechanism, lifting capacity, and software settings to ensure seamless compatibility.
-
Q4:
Can I pick specific totes without disrupting the entire stack?
A:
Yes! The flexible picking feature allows you to select individual totes from any layer without sequential unloading. This is ideal for dynamic order fulfillment and reduces workflow interruptions.
ADVANTAGE
The BlueSword Differences
-
30+ Years of ExpertiseWith decades of experience in logistics solution, BlueSword always incorporates the latest cutting-edge technology, thus you can always trust and upgrade.
-
One-Stop Logistics SolutionsWith the industry's most comprehensive product portfolio, BlueSword provides end-to-end logistics solutions tailored to your needs. Whatever you need, BlueSword delivers.
-
AI-Driven Software EcosystemHarnessing machine learning and digital twin tech, our intelligent software optimizes inventory, picking, transporting in real time.
-
Future-Ready ScalabilityModular architecture scales from small warehouses to mega hubs. 20+ industry-tailored packages meet your unique needs.
-
Global Support, Zero Downtime24/7 maintenance across 100+ cities worldwide. Guaranteed 1-hour response and on-site crisis resolution keeps your operations bulletproof.
